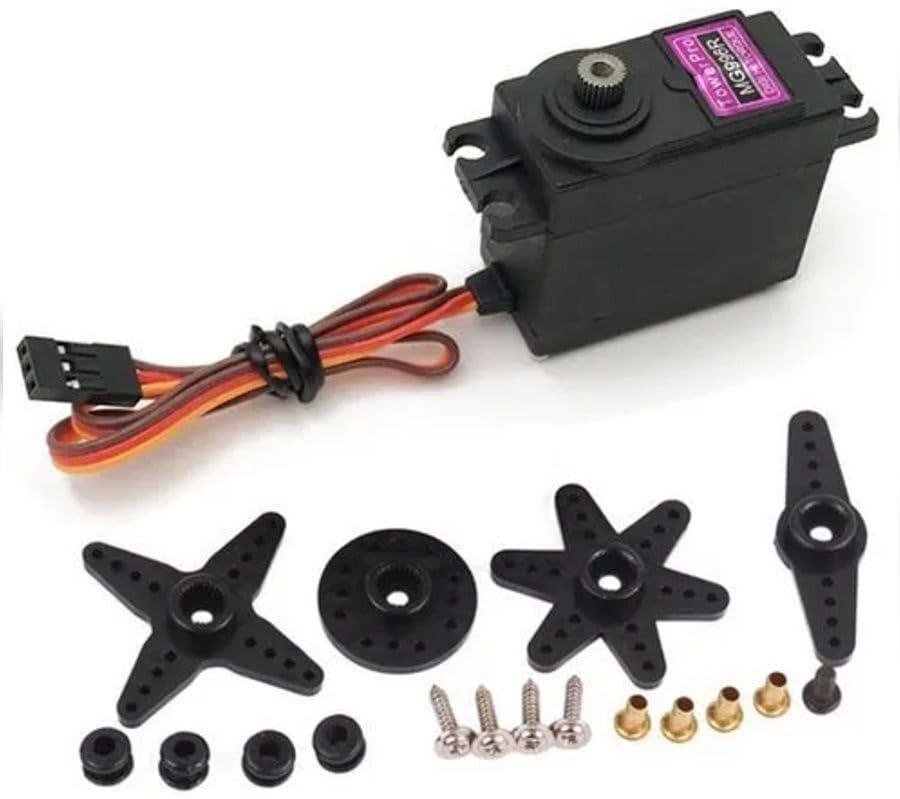

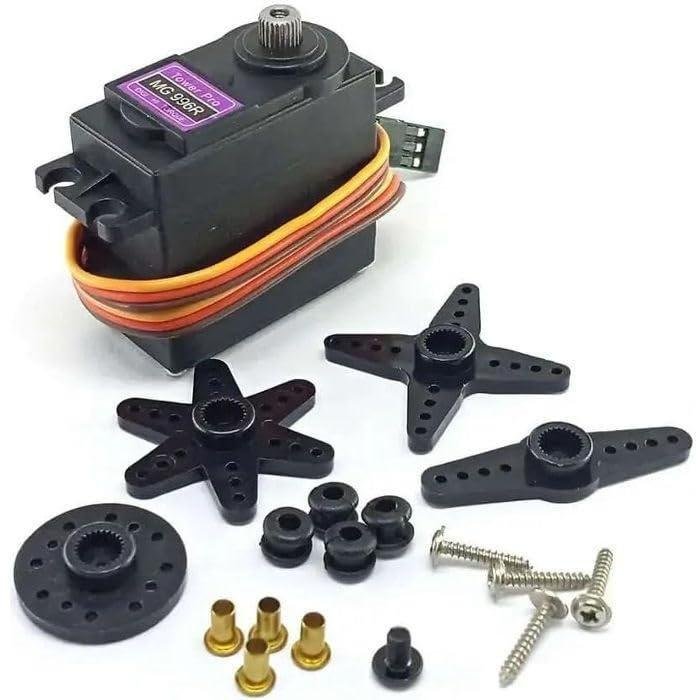

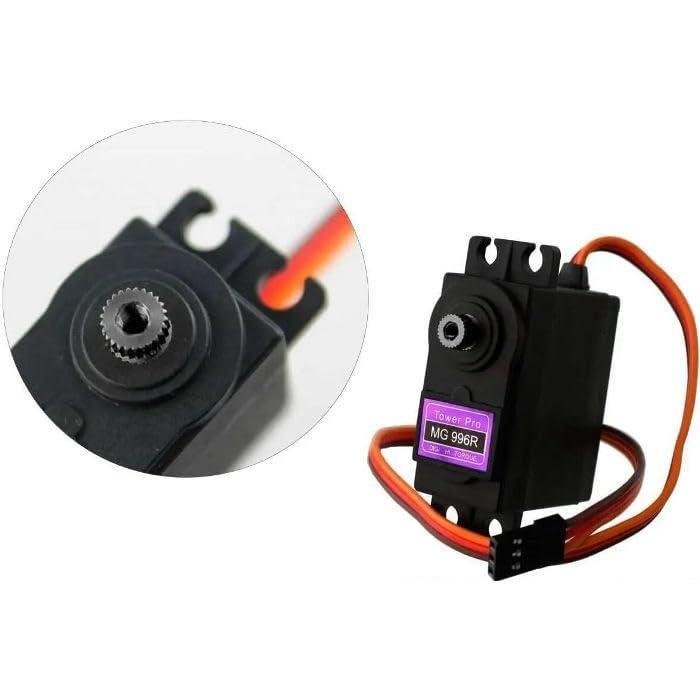

MG996R Servo Motor 360° 11 kg.cm Metal Gears

The MG996R High-Torque Digital Servo comes with metal gears, delivering an impressive stalling torque of up to 10 kg in a compact design. This servo is an enhanced version of the popular MG995, featuring improved shock resistance, a redesigned PCB, and a more precise IC control system for greater accuracy.

Specifications:

• Weight: 55 g
• Dimensions: 40 × 20 × 37 mm (approx.)
• Stall Torque: 9.4 kg·cm (4.8 V), 11 kg·cm (6 V)
• Operating Speed: 0.17 s/60° (4.8 V), 0.14 s/60° (6 V)
• Rotation Angle: 360° (±60° from center)
• Operating Voltage: 4.8 V – 6 V
• Running Current: 500 mA
• Stall Current: 2.5 A (6 V)
• Deadband Width: 5 µs
• Design: Stable, shockproof double ball bearings
• Gears: Durable metal gears for extended life
• Temperature Range: 0 °C – 55 °C

Wiring:

• Orange: PWM
• Red: VCC
• Brown: GND
