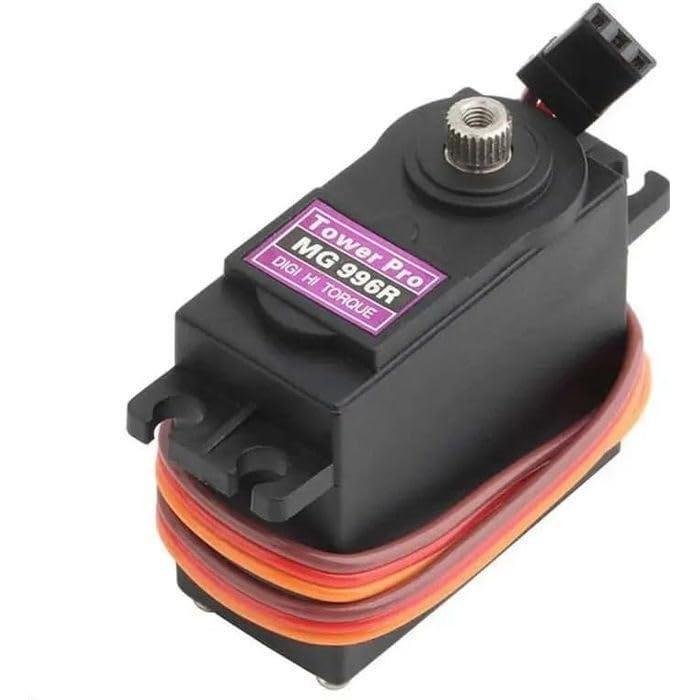

MG996R Servo Motor 180° 11 kg.cm Metal Gears

The MG996R is a high-torque digital servo featuring full metal gears, delivering up to 10 kg·cm stall torque in a compact design. It’s an enhanced version of the popular MG995 servo, with upgraded shock protection, a redesigned PCB, and an improved IC control system for more precise and reliable performance.

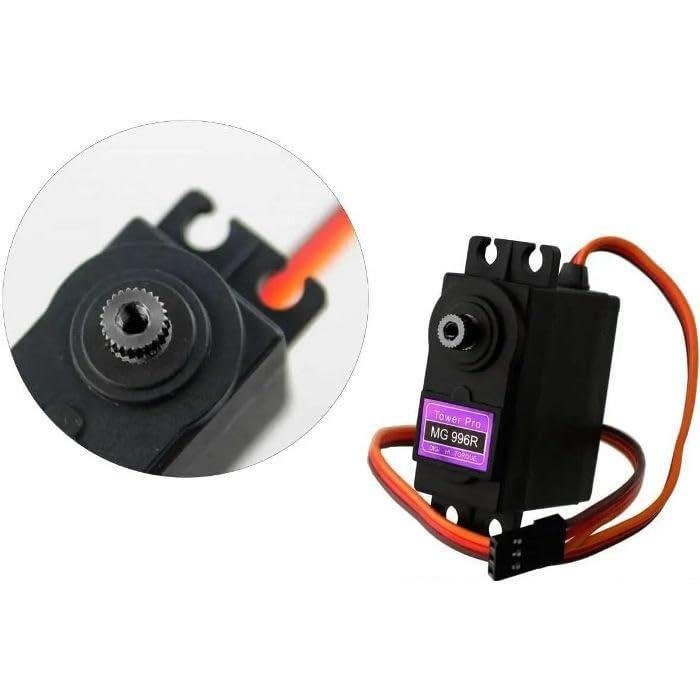

Both the motor and gears have been upgraded to improve centering and reduce dead bandwidth, making this servo highly accurate. The unit comes with a 30 cm wire and a 3-pin 'S' type female connector, compatible with most receivers, including Futaba, JR, GWS, Cirrus, Blue Bird, Blue Arrow, Corona, Berg, Spektrum, and Hitec.

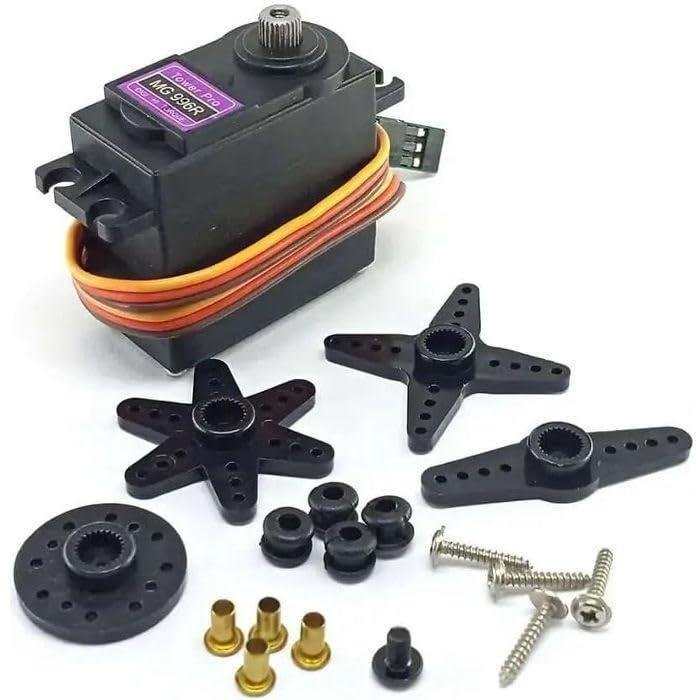

This standard high-torque servo rotates approximately 120° (±60° from center) and can be controlled using any standard servo code or library, making it ideal for beginners or projects where you want motion without building a separate motor controller. It also comes with a set of servo arms and mounting hardware for quick setup.

Specifications:

• Weight: 55 g
• Dimensions: 40 × 20 × 37 mm approx.
• Stall Torque: 9.4 kg·cm (4.8 V), 11 kg·cm (6 V)
• Operating Speed: 0.17 s/60° (4.8 V), 0.14 s/60° (6 V)
• Rotation Angle: 120° (±60° from center)
• Operating Voltage: 4.8 – 6 V
• Running Current: 500 mA
• Stall Current: 2.5 A (6 V)
• Dead Band Width: 5 µs
• Design: Stable and shockproof with double ball bearings
• Gears: Full metal for long life
• Operating Temperature: 0 – 55 °C

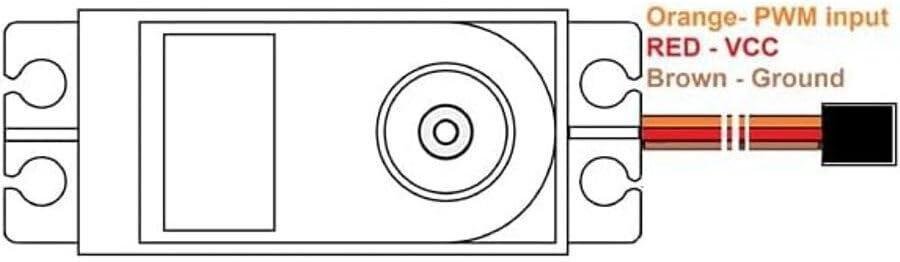

Connection:

• Orange: PWM
• Red: VCC (Power)
• Brown: GND
