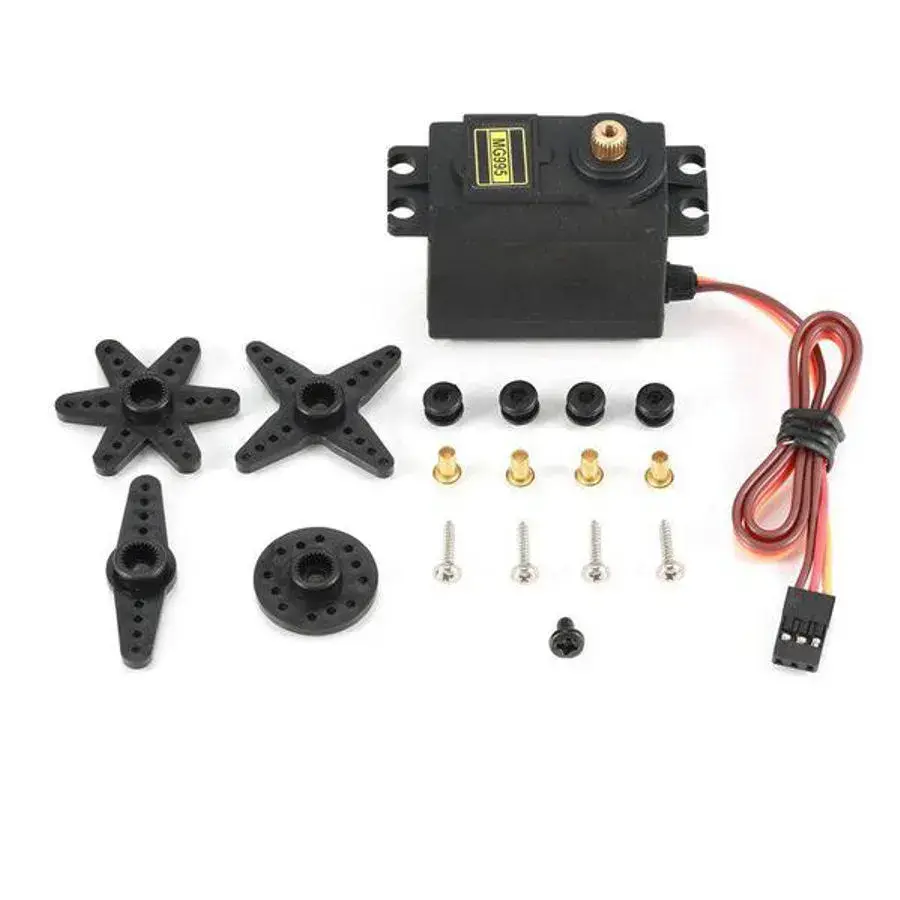

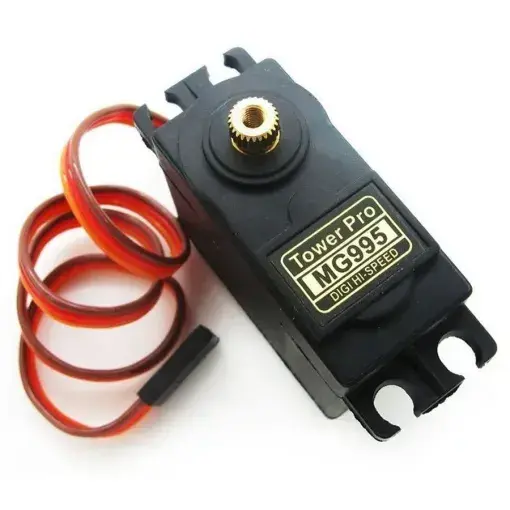

MG995 Servo Motor 180° 10 kg.cm Metal Gears

Performance:

• Operating Speed: 0.17 sec/60° at 4.8V (no load)
• Operating Speed: 0.13 sec/60° at 6.0V (no load)
• Stall Torque: 13 kg·cm (180.5 oz·in) at 4.8V
• Stall Torque: 15 kg·cm (208.3 oz·in) at 6V
• Operating Voltage: 4.8 – 7.2 V
• Gear Type: Full Metal Gears

Features:

• Compatible with most standard receiver connectors including Futaba, Hitec, Sanwa, GWS, and others.
• Ideal for trucks, boats, and racing cars.
• Powered via external adapter.
• Coreless motor for smooth operation.
• Metal gears for durability.
• Double ball bearings for stability and shock resistance.
• Connector wire length: 300 mm

Connection:

• Orange: PWM signal
• Red: VCC (Power)
• Brown: GND
