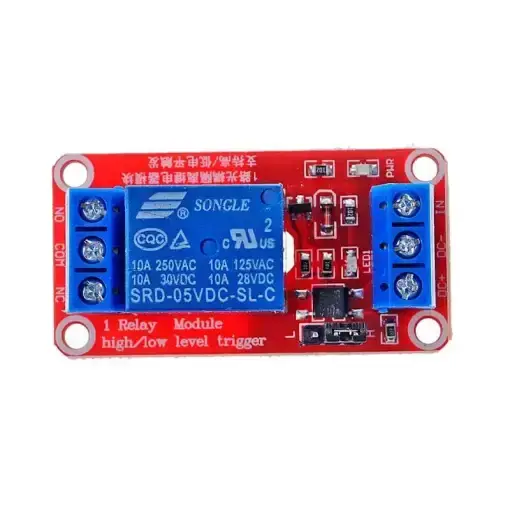

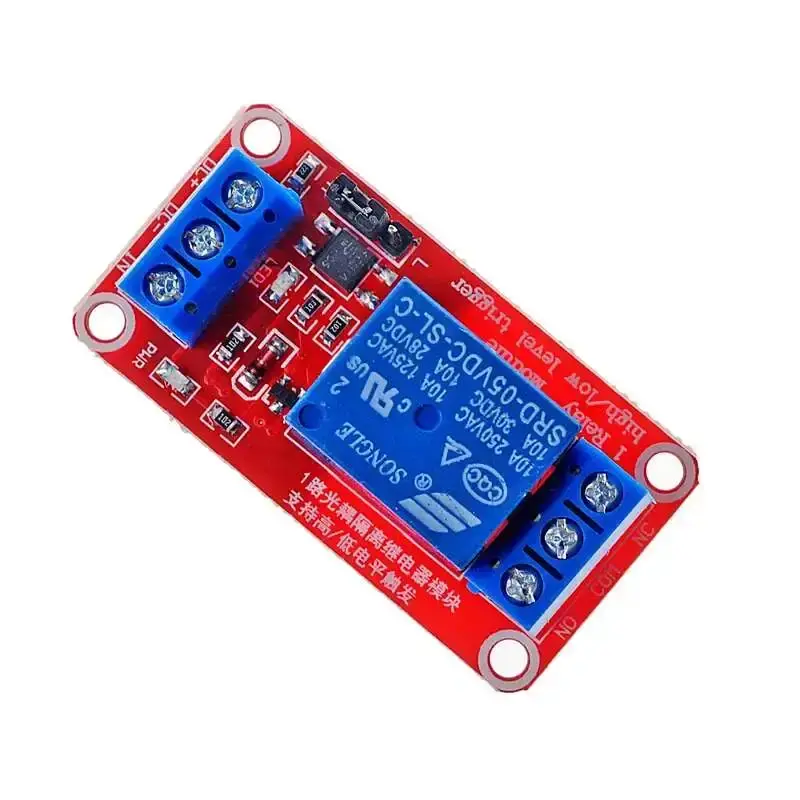

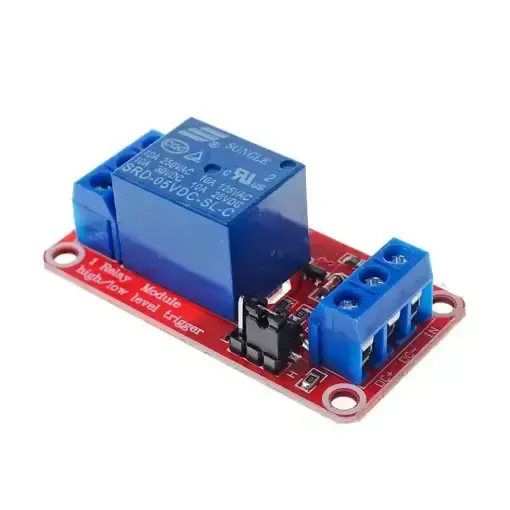

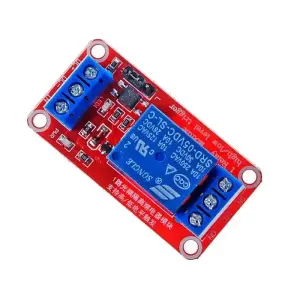

1 Output Relay Module Works on 5V Signal

This relay module features SMD optocoupler isolation for improved signal protection and stability. It supports high-level or low-level triggering, selectable via an onboard jumper. Designed with fault-tolerant protection, the relay will remain inactive if the control signal is disconnected, enhancing operational safety.

The module includes a green power indicator LED and a red relay status LED for easy monitoring. All connections are made through screw terminal blocks, ensuring secure and straightforward wiring.

Specifications

• Maximum Load:
  • AC: 250V / 10A
  • DC: 30V / 10A
• Trigger Current: 15 mA
• Operating Voltage: 5V DC
• Module Dimensions: 50 × 26 × 18.5 mm (L × W × H)
• Mounting Holes: 4 holes, 3.1 mm diameter

Module Interface

• DC+: +5V DC power input (VCC)
• DC-: Ground (GND)
• IN: Relay control input (supports high or low level triggering)

Relay Output Terminals

• NO: Normally Open
• COM: Common terminal
• NC: Normally Closed

Trigger Mode Selection

• Low-level trigger: Jumper connected to the LOW pin
• High-level trigger: Jumper connected to the HIGH pin
